1700 G-FEL

MADE IN TAIWAN

FEATURES:

• Bed Width 12"
• Meehanite Cast Iron, Vibration Stresses Relieved
• Induction Hardened (HS70 Degree) And Precision Ground
• Precision Hand Scraped Removable Gap
• Foot Brake
• CNE Piece Cast Iron Floor Stand

• Manual And Automatic Lubrication System- Oil Distributor Adjusted To Lubricating Bedways And Cross Side Or Both
• Overload Protection Device
• Cross Slide Is Hardened And Precision Ground
• Cross Slide Screws Are Hardened And Oil Bathed
• Forward-Off-Reverse Lever
• Top And Saddle Slide Locking System
• T-Slot Compound For America Area

• Supported By 3 Precision P-Grade Taper Roller Bearings
• Dynamically Balanced, Hardened, And Precision Ground
• D1-6 Spindle Nose
• Spindle Hold 2 1/4"

• Oil Bath Lubrication
• Heat-Treated Gears
• Inch/Metric/Module/Diametrical Threads
• Output Shaft Is Designed With Safety Pin

• All Gears Made By Chromium Molybdenum Steel And Segmentation Treated And Precision Ground
• Forced Lubrication System

• Quill made By Chromium Molybdenum Steel With Segmentation And Precision Ground
• Tailstock Spindle 2 3/8" And Spindle Travel 6"

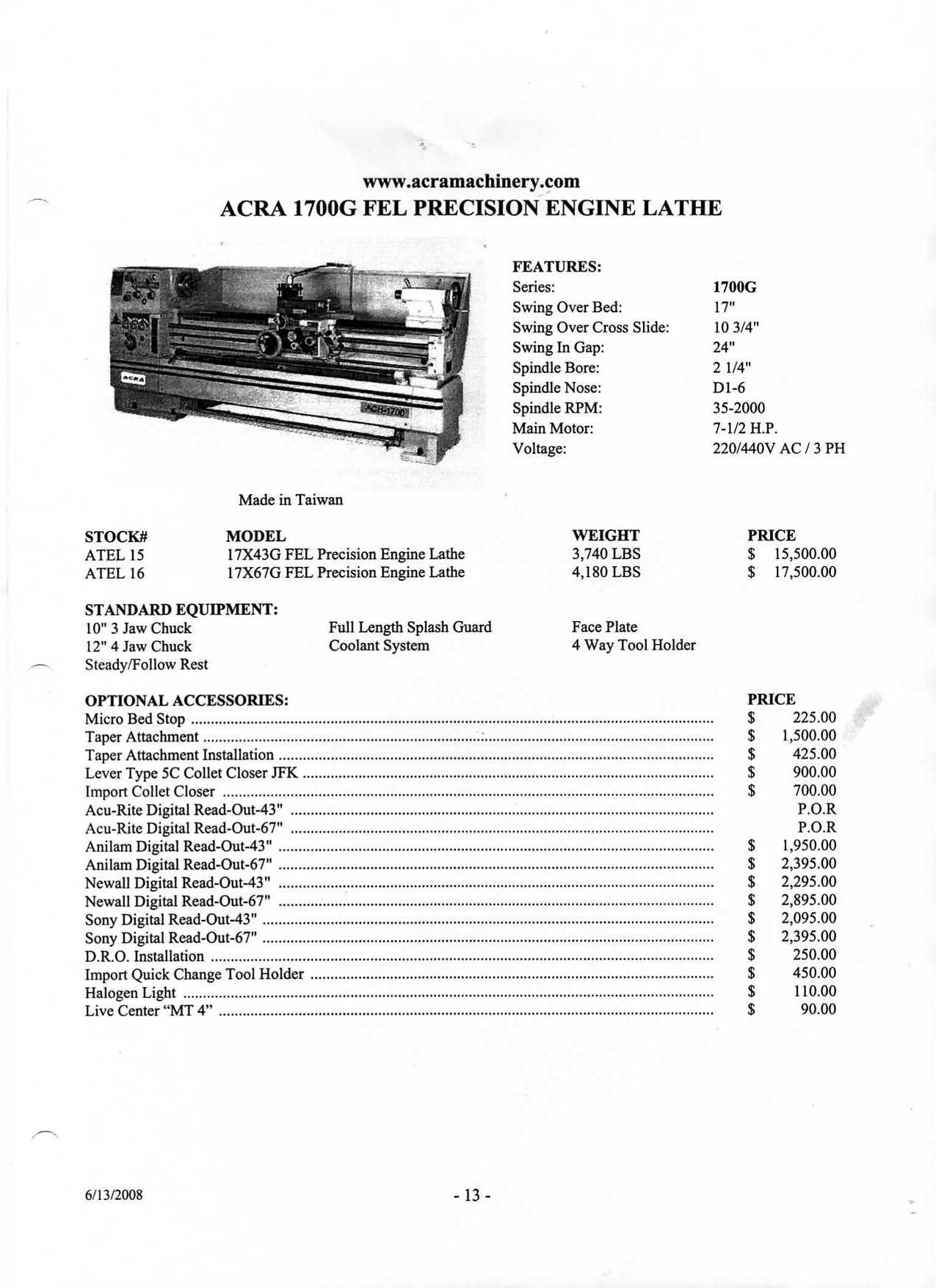

Brochure

Price List
